Flat Metal Roof Leaking Problems Explained

Recognising and Addressing Common Challenges with Flat Roofs for Homes on the Central Coast

Although flat roofs do not dominate the Australian roofing market, their acceptance and popularity are steadily increasing among both residential and commercial buildings. These roofs are frequently found on patios, carports, walkways, and other areas that necessitate low-pitch roofing. When the slope is minimal, flat roofs may also be referred to as “skillion roofs.”

Flat roofs provide numerous advantages for property owners, yet they come with distinct challenges that must be acknowledged. It is crucial for homeowners to understand the common issues associated with flat roofing systems and adopt strategies for their prevention, particularly on the Central Coast, where the coastal climate, high rainfall, and salt-laden air can exacerbate roofing challenges.

What Factors Are Driving the Increasing Popularity of Flat Roofs Among Homeowners?

Flat roofs are increasingly favoured in both residential and commercial constructions for various compelling reasons:

• They are quicker and simpler to install, resulting in faster project completion times.
• They facilitate easier maintenance access, simplifying routine inspections and repairs.
• They provide ideal surfaces for solar panel installations, enhancing energy efficiency.

The most significant concern regarding flat roofs is the management of water drainage. Water poses a serious threat to your roof's integrity. When planning a new roof installation or upgrading an existing one, it is essential to account for various factors, particularly rainfall, which can vary drastically across different regions of Australia.

What Are the Major Drainage Issues Associated with Flat Roofs?

Unlike pitched roofs, which allow rainwater to flow off quickly into gutters, flat roofs have a minimal slope. This design can result in water pooling, which may persist for extended periods. If water is not effectively directed away from the roof, it can lead to:

• Surface staining and deterioration of roofing materials.
• Gradual structural weakening of roofing components over time.
• Accumulation of mould and mildew, which can pose health risks.
• Leaks that may penetrate the interior of the building.

Successfully addressing these challenges hinges on effective roof plumbing and thoughtful design that considers the unique obstacles presented by flat roofs.

How to Design Flat Roofs for Optimal Drainage Performance

Prior to installation, a professional roofing contractor will evaluate several critical factors that influence drainage performance:

• Local rainfall intensity and predominant weather patterns.
• Total roof area and precise dimensions.
• Gutter configurations and effective drainage points.
• Specifications for downpipe dimensions.
• Overflow prevention measures to manage excess water.
• Considerations regarding roof pitch to improve drainage efficiency.

Most roofing manufacturers advise a minimum slope of 5° for low-pitch roofs. Roofs that fall below this slope can jeopardise waterproofing efforts and may void product warranties, resulting in expensive repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not ideal for very low-pitch applications. For flat roofs, specific roofing profiles engineered to facilitate efficient water shedding are strongly recommended to ensure long-term performance.

Examining the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance watertightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips rather than screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the correct roofing profile based on your roof pitch and local rainfall conditions is crucial for ensuring the durable performance and reliability of your roofing system.

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

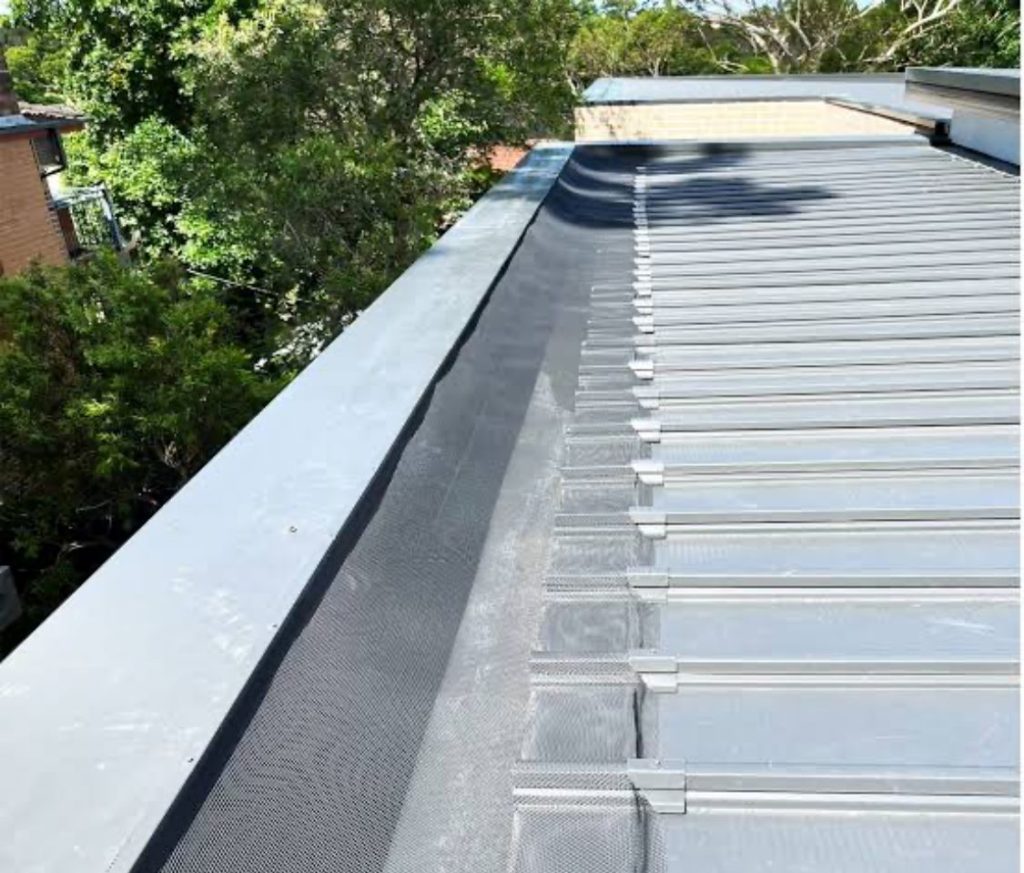

On flat roofs, box gutters are commonly used to connect roof panels to drainage outlets. Since box gutters are situated below the roof plane, they require meticulous detailing and installation to prevent blockages and water back-up issues.

Common challenges associated with box gutters include:

• Debris accumulation from nearby trees and foliage.
• Improper fall or slope that impedes water flow.
• Overflowing back into the roof structure, leading to leaks.
• Blocked downpipes that hinder effective drainage.

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Should You Take into Account When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately accommodate the water flow demands of flat roofs. It is often essential to install guttering designed to manage larger water capacities. Next, we will explore various drainage and overflow options that can be incorporated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall.
• Effectively sweep debris away with high flow capabilities.
• Provide easier cleaning and maintenance options for homeowners.

Our top recommendation for gutters is self-cleaning designs, ideal for flat metal roofs while also offering an attractive appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design efficiently sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to adequately sized downpipes (for example, 100mm × 75mm) that can handle significant water volumes. In areas with abundant trees, installing leaf diverters or guards can greatly reduce blockage issues.

How Flashings Are Crucial for Preventing Water Ingress at Roof Joints

Flashings are vital components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is critical, as water can pool around these joints if they are not effectively sealed.

To efficiently prevent water entry:

• Flashings must be meticulously shaped to conform to the roof profiles.
• Waterproof sealants should be applied at all joints to ensure tight seals.
• Extra attention is required at corners and seams where water may collect.

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes special precautions during installation and uses high-quality waterproof sealant to prevent water pooling in these vulnerable areas.

Why Is Consistent Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure clear drainage.
• Checking downpipes for any signs of potential blockages.
• Inspecting roof surfaces for minor cracks or areas where water may pool.
• Re-sealing flashings as needed to maintain waterproof integrity.

Conducting routine maintenance checks can prevent the need for more extensive repairs in the future, thereby prolonging the lifespan of your roofing system.

Uncover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A contemporary, sleek architectural aesthetic that enhances property value.
• Optimised space for patios, decks, or utility services, maximising functionality.
• Convenient access for maintenance or solar panel installation, simplifying upkeep.

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are effectively managed, boosting the overall functionality and appearance of the building.

How to Ensure You Achieve the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in the coastal environment. Whether you are undertaking a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is essential for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the perfect time to address any roofing issues and prevent more significant problems in the future.

Flat Roofs Frequently Asked Questions: Do Flat Roofs Face More Issues Compared to Pitched Roofs?

Flat roofs can indeed encounter more drainage challenges if they are not designed correctly. Without an adequate slope, water may pool or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Feasible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, thereby ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to ensure effective water drainage. Half-round gutters and 100mm x 75mm downpipes are frequently used to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be advantageous in reducing maintenance needs.

What is the Expected Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as necessary will significantly extend the roof's lifespan and performance.
