French Drain Solutions for Runoff Management in Shellharbour

Addressing Water Ingress Problems in Shellharbour

A homeowner in Shellharbour encountered a serious and worsening problem with water ingress. Rainwater from two neighbouring properties, positioned at a higher elevation, began to flow into the garden and seep beneath the foundation of the house. This unwanted intrusion not only caused damage to the flooring but also promoted rising damp and mould growth within the property, jeopardising the integrity of recent renovations.

How Do You Locate the Source of Water Ingress?

The issue arose from both surface runoff and subsurface water flowing downhill from the rear and side yards of neighbouring properties. In the absence of a strong drainage system to intercept this influx, the water was forced to flow beneath the house.

Developing an Effective Drainage Solution

CS Plumbing designed and installed a gravity-fed French drain system specifically aimed at capturing and redirecting water before it could reach the foundation of the home.

The project encompassed several critical components:

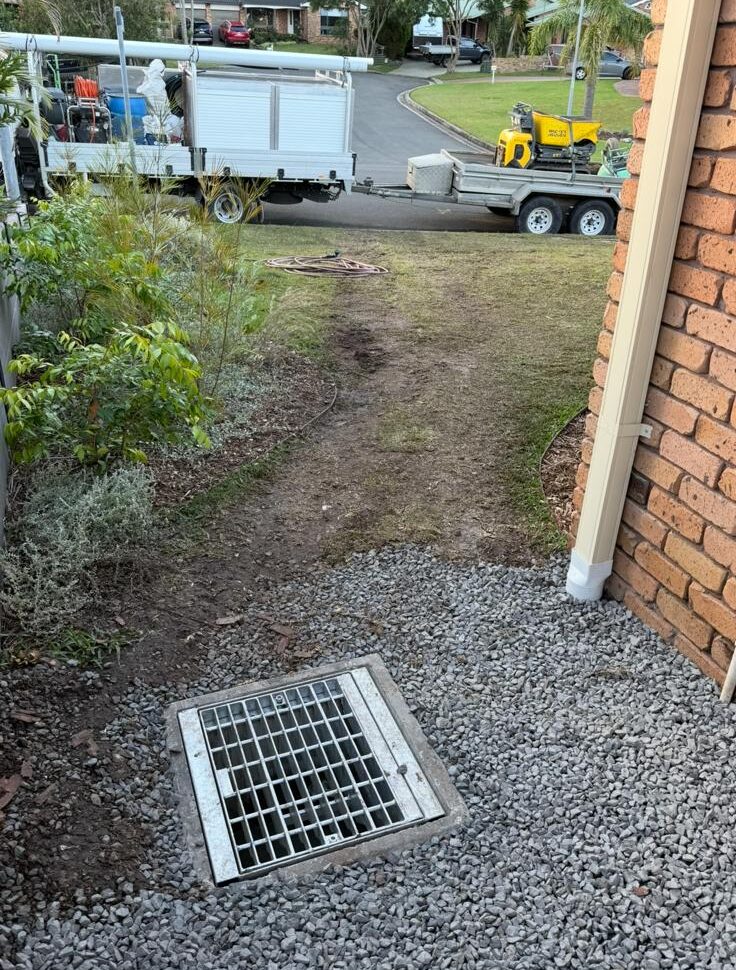

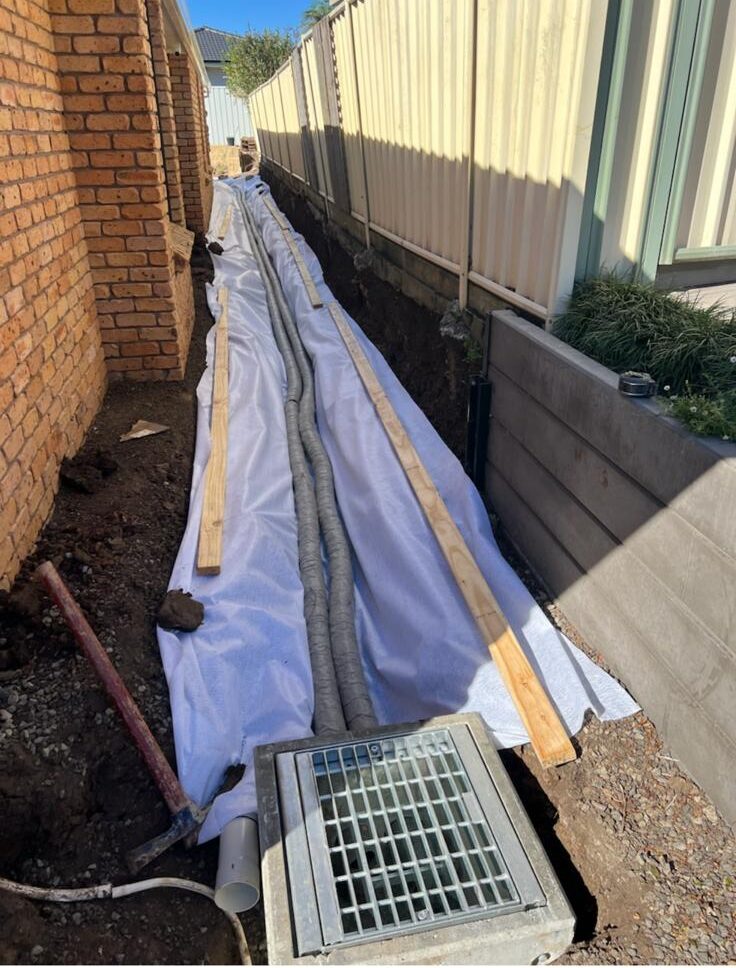

A French drain system carefully engineered to collect both surface and subsurface water from adjacent properties, directing it via gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the curb, equipped with strategically drilled holes to facilitate efficient discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, connected to new 100mm PVC piping leading to the curb.

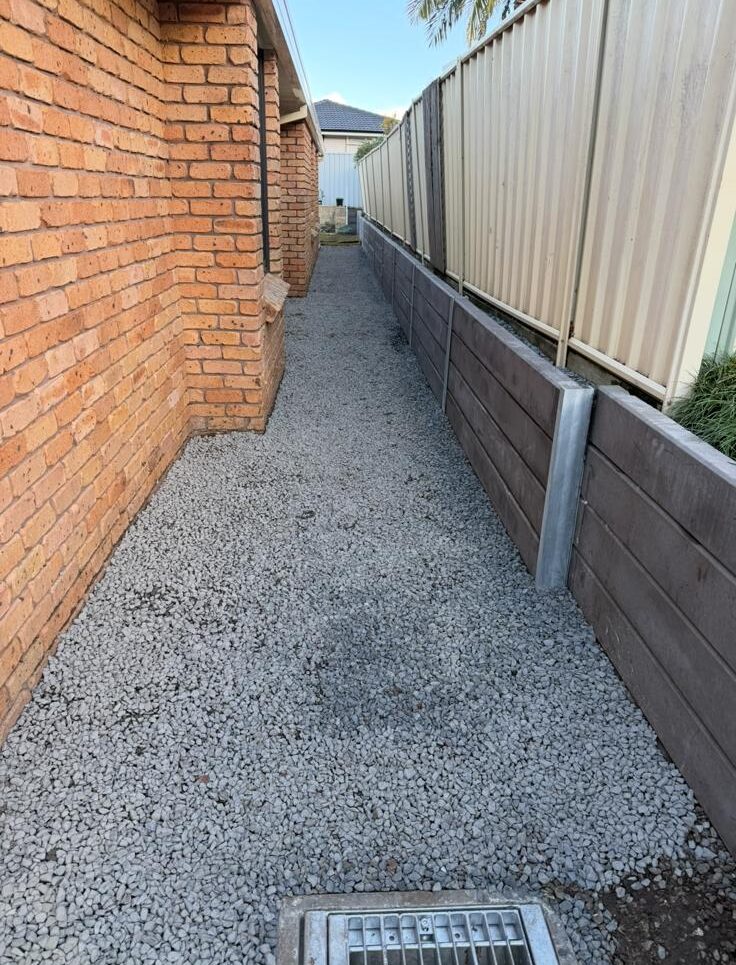

A retaining wall system constructed along the boundary, utilising concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to form a robust barrier to hold back the adjacent yard.

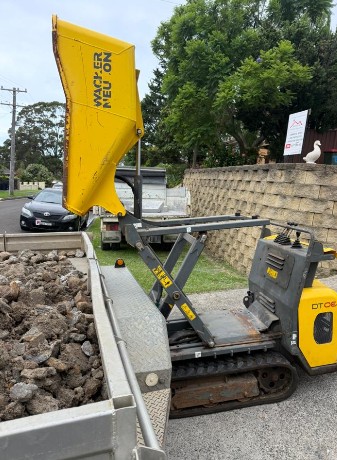

Efficient onsite soil removal, managed by a dumper for streamlined operations.

What Measures Can You Implement for Efficient Water Management?

The newly established drainage system now effectively captures both surface and subsurface water at the property boundary, ensuring that it is redirected away from the home. This solution provides the homeowner with a durable, low-maintenance option that protects their foundation, flooring, and the investment made in renovations.
