Solar Switchboard Upgrade for Chelmer’s Battery & Ducted Air Con

Project Location: Chelmer
Project Scope: Enhancement of switchboard systems
Result: A comprehensive single-phase switchboard upgrade that successfully supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—without the need for a three-phase upgrade.

Choosing Precision Electrical & Air for Your Essential Switchboard Upgrade

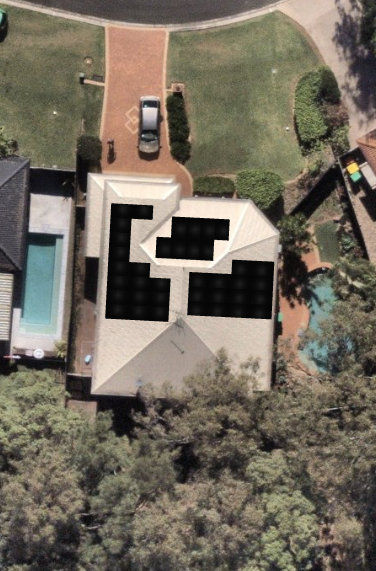

The homeowner in Chelmer undertook a significant renovation project which involved the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire property. Additionally, an advanced ducted air conditioning system was integrated into the overall renovation plan. Prior to the connection of these sophisticated systems, it was imperative to assess and enhance the current switchboard to ensure compliance with the latest safety standards and effectively manage the increased electrical loads associated with these installations.

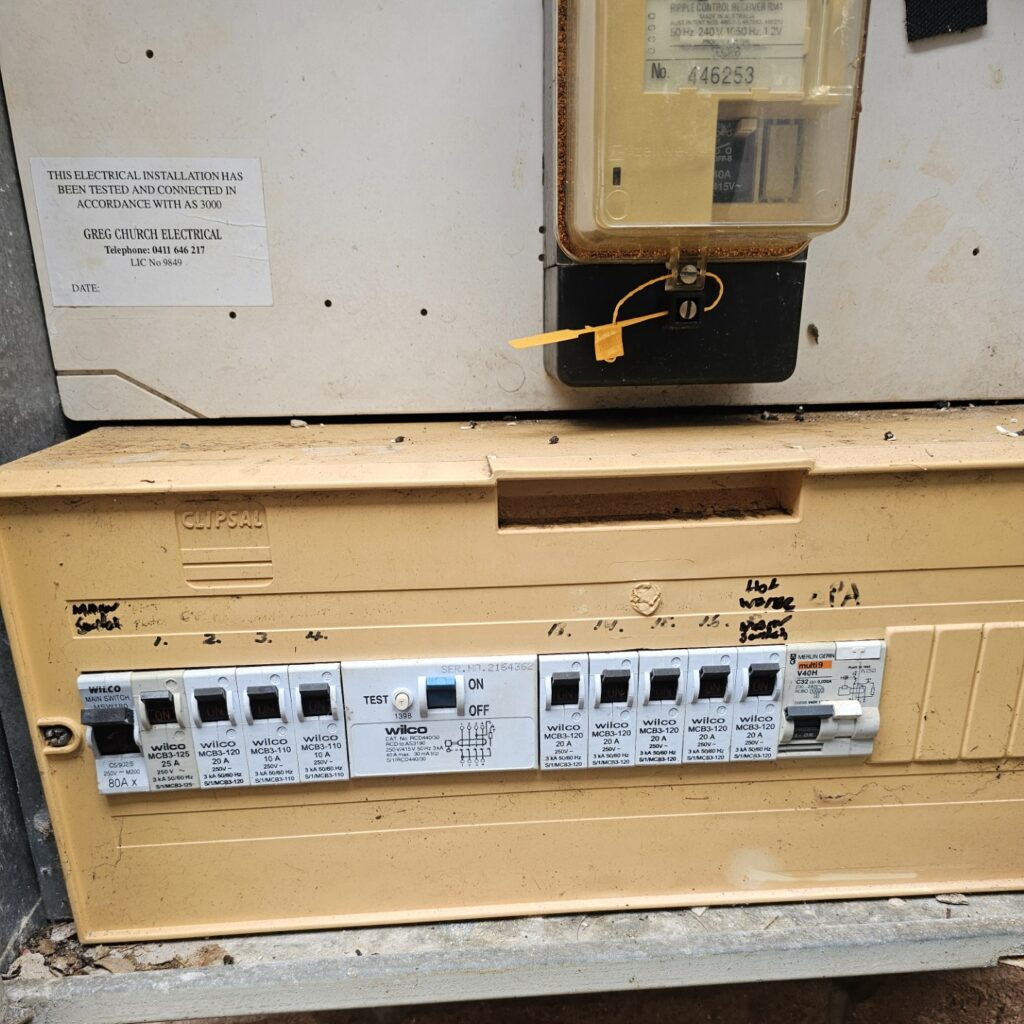

The original switchboard was outdated and equipped with obsolete circuit breakers, along with a single Residual Current Device (RCD) that provided insufficient protection for the entire property. This configuration was not capable of supporting the integration of solar energy systems and battery storage. Moreover, the inadequate circuit labeling rendered it non-compliant with modern standards governing contemporary energy generation systems. Such non-compliance posed a significant risk to the efficient operation of the newly upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your Solar System?

When assessing the specifications of a 17.86kW solar system complemented by a 30kWh battery, it is a common misconception that a three-phase upgrade is mandatory. This misunderstanding can lead to substantial financial repercussions for homeowners, potentially resulting in expenses ranging from £3,500 to £6,000, coupled with an extended wait for approval from Energex for any required network modifications.

Conducting a Comprehensive Initial Technical Assessment

Two pivotal factors significantly influenced the determination of whether a three-phase upgrade was indeed necessary. Firstly, the supply cable for the residence was strategically located near the street junction. This advantageous positioning facilitated the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since both the solar and battery systems are meticulously designed to alleviate demand on the grid rather than amplify it, there was no technical justification from the network's standpoint for the necessity of a three-phase upgrade. In addition, the ducted air conditioning system was confirmed to comply with the essential parameters required for efficient single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard underwent an upgrade to ensure it could safely and competently manage all new electrical loads without compromising safety or adherence to regulatory standards.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

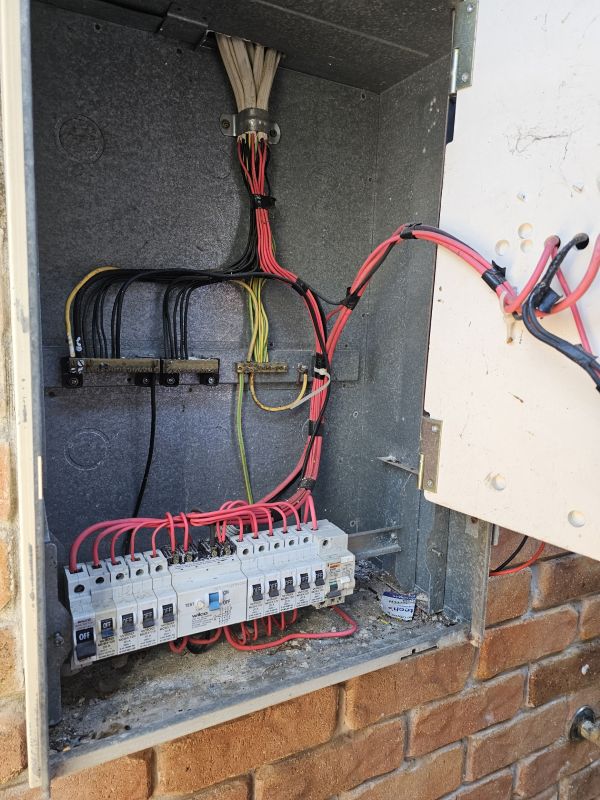

The existing switchboard underwent a meticulous dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton, with each breaker meticulously labelled for straightforward identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning all received dedicated circuits to bolster safety and ensure compliance with current regulations.

To optimise the hot water service's efficiency, a timer was integrated to guarantee its operation during peak solar generation hours. This strategic addition significantly reduces reliance on the grid by optimising the utilisation of the solar system's output throughout the day. Additionally, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and operational efficiency.

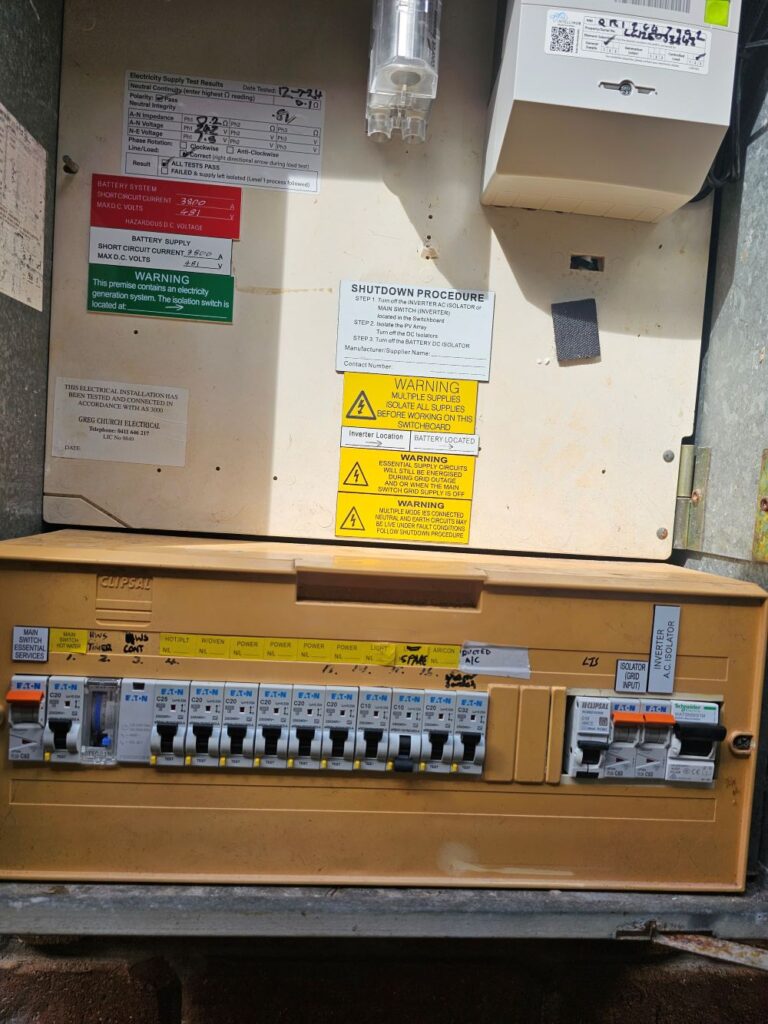

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to multiple supply warnings and an exhaustive shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Reaps Benefits from Successful Switchboard Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided the unnecessary expenses associated with a three-phase upgrade that was not essential for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be essential in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We assure you that no upselling will occur; you will receive an accurate evaluation tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property.
